Vertical Insert Injection Molding With Rotary Table
1. Description:
In order to best serve your needs, the insert injection molding machine is precisely tailored. A few of the options that offer a lot of flexibility include horizontal or vertical injection units, multi-color designs, sliding tables or rotary tables, manual part handling or extensive special automation. We give you a vertical injection molding machine that is specially made for you.
2. Sepcifications:
| Item | Unit | LZ-800-3V2R |
| Injection Unit | Screw Diameter | mm | Ø25 | Ø30 | Ø35 |
| Injection Pressure | Kg/cm2 | 2216 | 1892 | 1145 |
| Theoretical Shot Volume | cm3 | 213 | 264 | 319 |
| Shot Weight(PS) | g | 174 | 212 | 239 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 161 | 212 | 242 |
| Screw Stroke | mm | 145 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 122 |
| Nozzle Stroke | mm | 335 |
| Clamping Force | Clamping Force | tons | 120 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 585*1270 |
| Rotary Table Diameter | mm | - |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 590*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 6 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 153 |
| Cold Water Volume | Liters/min | 166 |
| Servo Motor | kw | 20 |
| Heating Volume | kw | 15 |
| Total Wattage | kw | 30 |
| Others | Machine Weight | tons | 6.4 |
| Machine Size | m | --- |
3. Machine Features:
1) The clamping unit's design, which shortens the clamping cylinder stroke using a screw rod and nuts, improves performance.
2) A working height that is lower than with a conventional design.
3) Compatibility with all insert component types.

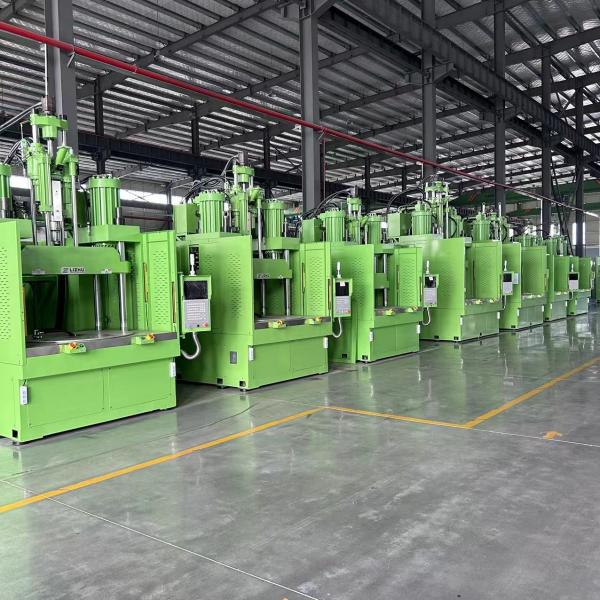

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
