20tons To 2000 Tons Rotary Vertical Injection Moulding Machine
Automatic Plastic Injection Moulding Machine
1. Description:
The dual injection cylinder system enables high-pressure and high-speed injection.
The hydraulic charging motor can turn 180 degrees from its original position due to the injection unite's unusual design, making it simple to change the material tube.
Because of the powerful injection structure, the injection union is stabilized when the hydraulic motor is charging.
The Toggle Clamping System has a clamping force range of 40 to 1000 tons.
The revolutionary Platen Lift System shortens clamping time. It reduces the burden of the toggle, allowing for a longer lifetime.
Our Toggle Clamping design achieves high-speed and smooth clamping while also requiring low-pressure clamping, which differs from Hydraulic Clamping.
The dual injection cylinder system enables high-pressure and high-speed injection.
2. Sepcifications:
| Specification |
| Model | Unit | 160T-200T-240T |
| Injection Unit | Screw diameter | mm | Ф50 | Ф55 | Ф60 |
| Maximum injection pressure | Kg/cm2 | 2150 | 1780 | 1490 |
| Theoretical shot volume | cm3 | 392 | 475 | 565 |
| Maximum shot weight(PS) | g/Oz | 346/12.2 | 420/14.8 | 500/ 17.6 |
| Injection rate | cm3/sec | 196 | 237 | 282 |
| Clamping Unit | Clamping Force | ton | 120 |
| Rotary Table Diameter | mm | 1600 |
| Minimum mold thickness | mm | 200/300 (customization) |
| Others | Machine Weight (approx.) | T | 11 |
| Machine dimensions(approx.) | m | |
3. Machine Features:
1) To increase output, the rotary table oscillates 180° and rotates back and forth to make loading and picking out finished pieces easier.
2) Automation, precise positioning for mold alignment, and rotary table with locating pin.
3) Vertical clamping and injection are two techniques.

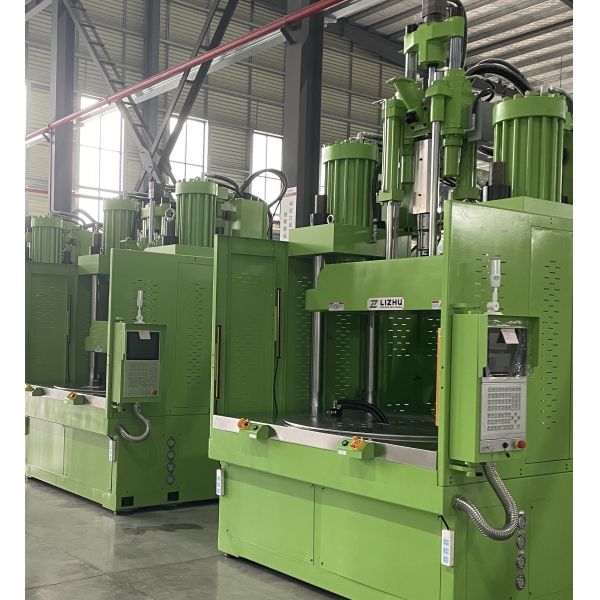

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
