Vertical Injection Moulding Machine Rotary Table
1. Description:
High-pressure and high-speed injection are both possible with the dual injection cylinder system.
The unusual design of the injection unit allows the hydraulic charging motor to rotate 180 degrees from its initial position, making material tube replacement simple.
The powerful injection structure stabilizes the injection union when the hydraulic motor is charging. The Toggle Clamping System's clamping force ranges from 40 to 1000 tons.
The cutting-edge Platen Lift System speeds up clamping. It makes the toggle easier to use, allowing for a longer lifespan.
Unlike hydraulic clamping, our toggle clamping design clamps at a high speed and smoothly, and depending on the various molds, even low-pressure clamping is required.
High-pressure and high-speed injection are both possible with the dual injection cylinder system.
2. Sepcifications:
| Specification |
| Model | Unit | 160T-200T-240T |
| Injection Unit | Screw diameter | mm | Ф50 | Ф55 | Ф60 |
| Maximum injection pressure | Kg/cm2 | 2150 | 1780 | 1490 |
| Theoretical shot volume | cm3 | 392 | 475 | 565 |
| Maximum shot weight(PS) | g/Oz | 346/12.2 | 420/14.8 | 500/ 17.6 |
| Injection rate | cm3/sec | 196 | 237 | 282 |
| Clamping Unit | Clamping Force | ton | 120 |
| Rotary Table Diameter | mm | 1600 |
| Minimum mold thickness | mm | 200/300 (customization) |
| Others | Machine Weight (approx.) | T | 11 |
| Machine dimensions(approx.) | m | |
3. Machine Features:
1) The rotary table rotates 180 degrees to increase output and makes it easier to load and remove finished products.
2) A rotary table with a locating pin, precise positioning for mold alignment, and automation
3) Vertical injection and clamping.

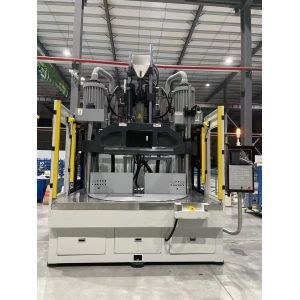

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
