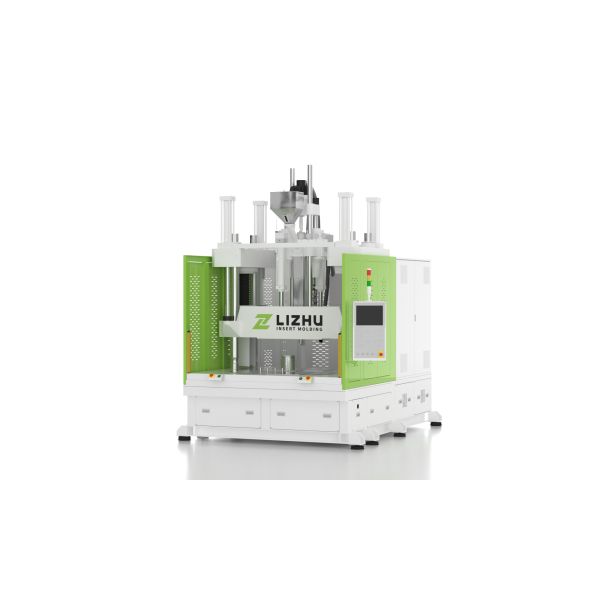

Chinese Small Vertical Injection Molding Machine : Plastics Technology
1. Description:
The insert injection moulding machine is precisely suited to your requirements. Horizontal or vertical injection units, multi-color designs, sliding or rotational tables, manual component handling, and extensive customizable automation are all available. We will create a vertical injection molding machine just for you. Safety systems are ideal for maintaining continuous production and staff safety. Intelligent conveyor systems move the molded components out of the production unit quickly and carefully.
Optional slide table or rotary table for added safety and productivity.
2. Sepcifications:
| Item | Unit | LZ-LB |
| Injection Unit | Screw Diameter | mm | Ø35 | Ø40 | Ø45 |
| Injection Pressure | Kg/cm2 | 2016 | 1898 | 1207 |
| Theoretical Shot Volume | cm3 | 213 | 202 | 309 |
| Shot Weight(PS) | g | 177 | 211 | 234 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 165 | 218 | 233 |
| Screw Stroke | mm | 135 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 128 |
| Nozzle Stroke | mm | 345 |
| Clamping Force | Clamping Force | tons | 30 |
| Opening Force | tons | 15 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 585*1270 |
| Rotary Table Diameter | mm | 1300 |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 590*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 6 |
| Ejector Diameter | mm | 20 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 147 |
| Cold Water Volume | Liters/min | 167 |
| Servo Motor | kw | 20 |
| Heating Volume | kw | 15 |
| Total Wattage | kw | 35 |
| Others | Machine Weight | tons | 7.2 |
| Machine Size | m | -- |
3. Machine Features:
Energy efficiency – energy is only consumed during machine movements, resulting in 30% to 70% energy savings.
Cost savings during production – lower operational costs due to energy savings, fewer consumable expenses
High repeatability and precision
The method is faster and more efficient because of the ability to do parallel movements.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
|
|
